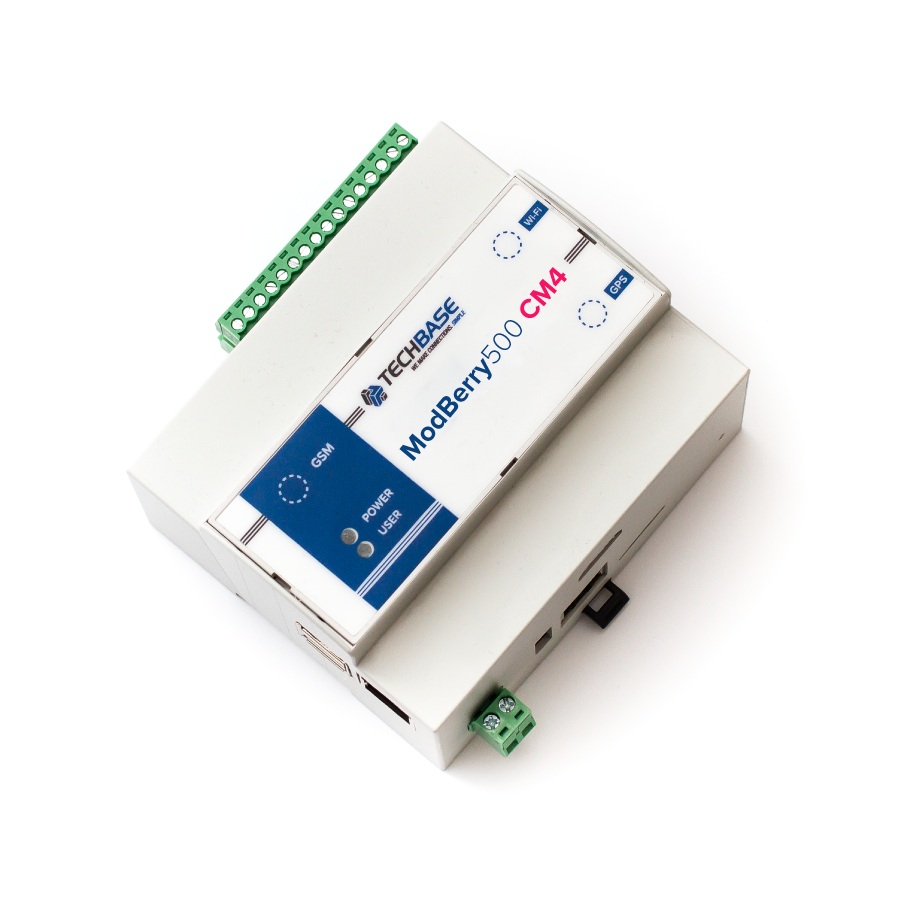

ModBerry 500 CM4 TEST

Industrial Computer powered with Raspberry Pi Compute Module 4 which you can easily adapt to your needs. Upgraded ModBerry 500 CM4 series use latest Processor Module, powered by Quad-core Cortex-A72 1.5GHz processor, 1/2/4/8GB LPDDR4 RAM and up to 32GB eMMC on-board.  ModBerry optionally features wide range of additional I/Os, such as Digital and Analog Inputs/Outpus, Serial Ports, Ethernet, CAN and wireless modems.


Prices for base device & options are represented for minimal purchase quantity. To receive a certain discount amount (5%, 10%, etc.), order in bulk – details below.

Delivery time: approx. 2 months (depending on the availability of CM4 module, ask us via chat)

In stock

 €
1-2-0%
3-14-5%
15-29-10%
30-60-15%
Login to see the prices
Category:

Description

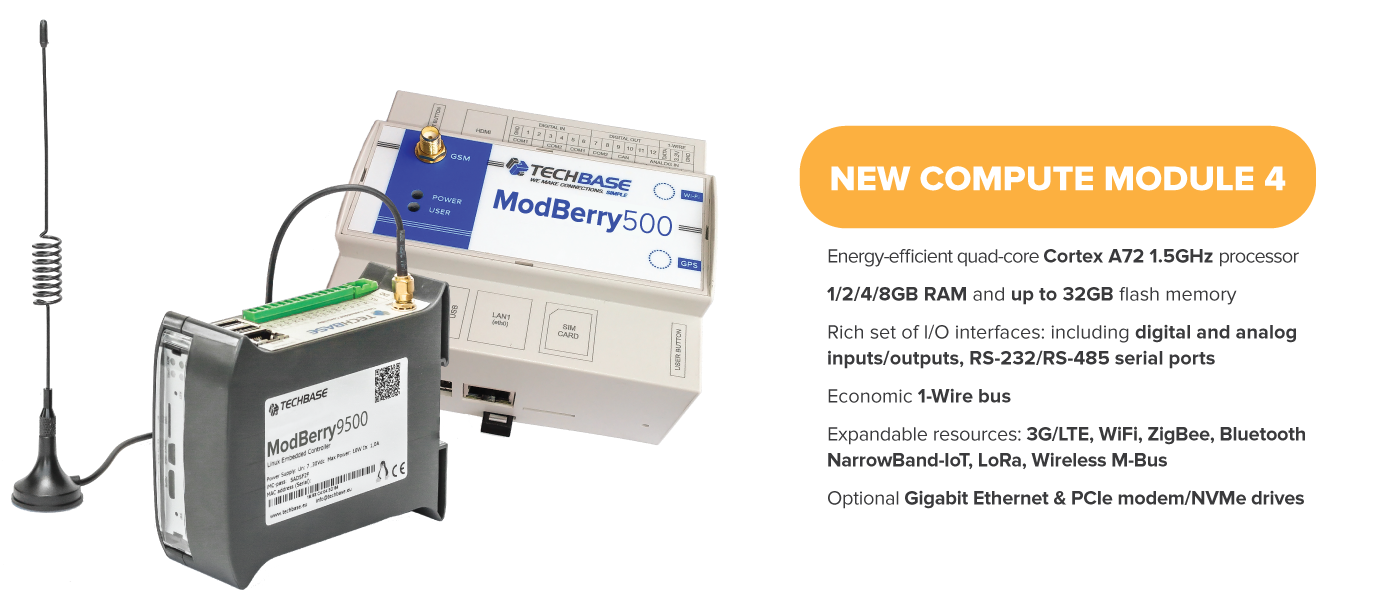

ModBerry is a series of industrial computers which you can easily adapt to your needs by choosing from the available options. Upgraded ModBerry 500 CM4 industrial computer series use latest Compute Module 4, powered by Quad-core Cortex-A72 1.5GHz processor, 1/2/4/8GB LPDDR4 RAM and up to 32GB eMMC on-board. The module increase the device’s performance up to ten times, maintaining low power consuption and optimal price of this solution. ModBerry optionally features industrial protocol support, e.g. Modbus, M-Bus, SNMP, MQTT, CODESYS, Profibus (via CODESYS) and more.

Configurable Industrial IoT

Our devices can be adjusted for installation’s needs and be remotely managed in cloud-based system. ModBerry devices are suited for use in harsh industrial conditions eg. factories, power plants, etc. ModBerry devices are fully equipped to meet industrial applications while retaining optimal price.

  • Digital Inputs/Outputs
  • Analog Inputs/Outputs
  • Serial ports
  • Ethernet
  • USB
  • 1-Wire
  • CAN (optional)
  • Wireless LTE/3G/GPRS/EDGE transmission
  • Wireless M-Bus, NarrowBand-IoT, LoRa, ZigBee, Sigfox and many more

Raspberry Pi Compatible

Over 23 million Raspberry Pi’s have been sold and the Raspberry Pi is likely to stay as a new standard in the industry. Official Raspbian OS is free operating system based on Linux Debian optimized for the Raspberry Pi comes with over 35,000 packages, pre-compiled software bundled in a nice format for easy installation. ModBerry devices are compatible with Raspberry Pi accessories, supported by Raspberry Pi Foundation. Now compatible with Compute Module 3+.

The design of the ModBerry 500 allows for trouble-free operation in industrial conditions. It has a fanless case and is characterised by high resistance to external conditions and high reliability. The Raspberry Pi Linux system provides stable operation of the device.

Additional industrial protocol support

Due to flexible configuration, the device can operate as a protocol and interface converter:

  • Modbus TCP
  • Modbus RTU
  • M-Bus
  • MQTT
  • SNMP
  • CODESYS
  • Profibus (via CODESYS)
  • and many more custom protocols

In addition, due to the possibilities of the Raspberry Pi Linux operating system, each user can create their own protocols with the use of the available SDK.

Industrial IoT Layers

ModBerry 500 can serve as a multichannel telemetry module, providing constant uninterrupted access to data. It enables you to save the results of measurements and parameter values of connected devices – data can be saved to internal memory. You can also save data to internal and external databases.

ModBerry 500 can generate alarm signals and provide information on current parameter values. Built-in LTE/3G/GPRS modem enables wireless communication.

Industrial grade application: iModCloud Ecosystem, the first industrial grade complete software stack for System Integrators, Installers, fast to market approach start-ups – is ready to be use on ModBerry devices.

Additional information

Controller Platform

Compute Module 4, Raspberry Pi

Interfaces

1-Wire, Analog Inputs, Analog Outputs, CAN, Digital Inputs, Digital Outputs, Ethernet, HDMI, M-Bus, M-Bus Slave, RS-232, RS-485, USB

Wireless Modem

3G/LTE, Bluetooth, GPRS, GPS, LoRa, NarrowBand-IoT, Sigfox, Wi-Fi, Wireless M-Bus, ZigBee

Additional features

IP67, OLED screen, UPS SuperCap, Wide temp. range

Protocol

CODESYS, Modbus, MQTT, Profibus, SNMP

ModBerry 500 CM4 Datasheet

Download

View full PDF datasheet of ModBerry 500 CM4 device
